Dashboard page

Dashboards are collections of widgets that allow you to display entity data using graphic elements.

⬆ The Plan my day dashboard as displayed in Port's demo portal.
It tracks the logged-in user's open tasks, PRs, and issues, as well as quick actions to perform routine tasks.

Similar to catalog pages, dashboards reside in the panel on the left-hand side of the software catalog.
Dashboards are a great way to display aggregated data and track information that is relevant and/or interesting to you and your developers.

Create a dashboard page

From the UI

1. Go to the Catalog page of your portal.

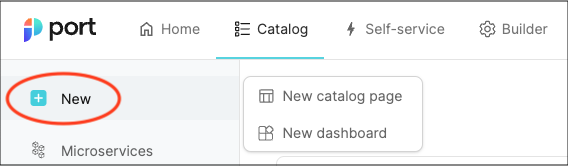

2. In the left sidebar, click on +, then select New dashboard.

3. Name your dashboard and click Create.

From Pulumi

Port Pulumi

See all the supported variables in the Port Pulumi documentation

Introduction

This guide walks you through creating custom pages using our Pulumi provider. We'll cover:

• Widget Building Blocks: Creating the helper functions for generating different widget types.
• Dashboard Design: Composing widgets into layouts for your dashboard.
• Customization: Adapting the examples to your specific needs.

Prerequisites

1. Basic Port Concepts: Familiarity with blueprints, entities, and datasets in your Port system is helpful.
2. You will also need your Port credentials.
3. This guide also assumes that you have installed Pulumi, and the Port provider's SDK in your chosen language.

Python

1. Let us create some helper functions. These will help to create the different kinds of widgets.

Widget Helper Functions

import json
from port_pulumi import Page

# Widget Helper Functions
def generate_widget_id(title, widget_type):
    """
    Generates a unique widget ID based on the title and widget type.

    Args:
        title (str): The title of the widget.
        widget_type (str): The type of the widget (e.g., "markdown", "table-entities-explorer").

    Returns:
        str: The generated widget ID, e.g., "microservicesGuideMarkdown".
    """
    # Convert title to camelCase
    title_words = title.split()
    camel_case_title = title_words[0].lower() + "".join(
        word.capitalize() for word in title_words[1:]
    )

    # Combine camelCase title and widget type
    base_id = f"{camel_case_title}{widget_type.capitalize()}"

    # Ensure the length does not exceed the limit
    max_length = len("QlUwO3VRBMQ3HjdH")
    return base_id[:max_length]

# Load markdown from a file helper function
def read_markdown_file(file_path):
    with open(file_path, "r", encoding="utf-8") as file:
        markdown_content = file.read()
        return markdown_content


def create_markdown_widget(title, description, markdown_content):
    """
    Creates a markdown widget configuration.

    Args:
        title (str): The title of the widget.
        subtitle (str): The subtitle of the markdown content.
        description (str): A description for the widget.

    Returns:
        tuple: A tuple containing:
            * widget_config (dict): The widget configuration dictionary.
            * widget_id (str): The generated widget ID.
    """
    widget_id = generate_widget_id(title, "markdown")
    widget_config = {
        "title": title,
        "icon": "BlankPage",
        "markdown": markdown_content,
        "type": "markdown",
        "description": description,
        "id": widget_id,
    }
    return widget_config, widget_id


def create_iframe_widget(title, url, url_type="public", description=""):
    widget_id = generate_widget_id(title, "iframe-widget")
    widget_config = {
        "title": title,
        "description": description,
        "icon": "Code",
        "urlType": url_type,
        "url": url,
        "type": "iframe-widget",
        "id": widget_id,
    }
    return widget_config, widget_id

2. Now we can define the widgets in our dashboard and the layout of the page.

Dashboard Configuration

# ... (Rest of the Code: Helper Functions)

file_path = "microservices.md"  # Replace with the path to your Markdown file
markdown_content = read_markdown_file(file_path)

# Widget Creation (with IDs); we use the IDs to define the layout of the dashboard
markdown_config, markdown_id = create_markdown_widget(
    title="Service Guide",
    description="Services are typically organized around business capabilities. Each service is often owned by a single, small team.",
    markdown_content=markdown_content,
)

quote_config, quote_id = create_iframe_widget(
    title="Quote of the Day",
    url="https://kwize.com/quote-of-the-day/embed/&txt=0"
)

# Dashboard Layout Definition
dashboard_layout = {
    "id": "myDashboardWidget",  # This is optional, as Port can auto-generate IDs
    "type": "dashboard-widget",
    "layout": [
        {
            "columns": [
                {"id": markdown_id, "size": 6},
                {"id": quote_id, "size": 6},
            ],
            "height": 400,
        }
    ],
}

widgets_config = {
    **dashboard_layout,  # Embed the layout structure
    "widgets": [
        markdown_config,
        quote_config
    ],
}

print(widgets_config)

3. Now we can define the page and run pulumi up to create the page in Port.

Page Definition

import json
from port_pulumi import Page

// ... (Rest of the Code)

# Page Creation
microservice_dashboard_page = Page(
    "microservice-overview-page-resource",
    identifier="microservice_overview_page",
    title="Microservices Dashboard",
    icon="Microservice",
    type="dashboard",
    widgets=[json.dumps(widgets_config)],
)

4. Let us now add helper functions to create dataset dependent widgets.

tip

If you have not already, we recommend installing the GitHub app in order to get some data into your Port account. Subsequently, you can use the blueprints from this guide and follow along for tangible results.

More Widget Functions

# ... (Other helper functions)

def use_dataset(blueprint_id):
    """
    Creates a dataset configuration that filters entities based on the provided blueprint ID.

    Args:
        blueprint_id (str): The ID of the blueprint to filter for.

    Returns:
        dict: The dataset configuration dictionary.
    """
    return {  # Directly return the dataset
        "combinator": "and",
        "rules": [{"operator": "=", "value": blueprint_id, "property": "$blueprint"}],
    }


def create_table_explorer_widget(title, dataset, excludedFields=["properties.readme"]):
    widget_id = generate_widget_id(title, "table-entities-explorer")
    widget_config = {
        "displayMode": "widget",
        "title": title,
        "type": "table-entities-explorer",
        "dataset": dataset,
        "id": widget_id,
        "excludedFields": excludedFields,
    }
    return widget_config, widget_id


def create_entities_pie_chart_widget(title, dataset, property):
    widget_id = generate_widget_id(title, "entities-pie-chart")
    widget_config = {
        "title": title,
        "icon": "PieChart",
        "type": "entities-pie-chart",
        "dataset": dataset,
        "property": property,
        "id": widget_id,
    }
    return widget_config, widget_id


def create_entities_number_chart_widget(
    title,
    blueprint_id,
    dataset=[],
    func="average",
    measure_time_by="$createdAt",
    averageOf="day",
    description="",
):
    """
    Creates an entities number chart widget configuration.

    Args:
      title (str):  The title of the widget.
      dataset:  The dataset for the widget.
      func (str, optional): The aggregation function to use. Options: "average", "count", "sum". Defaults to "average".
      measure_time_by (str, optional): The property to use for time-based aggregations. Defaults to "$createdAt".
      averageOf (str, optional): The time period for averaging. Options: "day", "week", "month". Defaults to "day".
      description (str, optional): A description for the widget.

    Returns:
      tuple: A tuple containing the widget configuration dictionary and its ID.
    """

    widget_id = generate_widget_id(title, "entities-number-chart")
    widget_config = {
        "blueprint": blueprint_id,
        "calculationBy": "entities",
        "title": title,
        "description": description,
        "type": "entities-number-chart",
        "icon": "Calculator",
        "dataset": dataset,
        "func": func,
        "measureTimeBy": measure_time_by,
        "averageOf": averageOf,
        "unit": "custom",
        "unitCustom": "per day",
        "id": widget_id,
    }
    return widget_config, widget_id

5. Let us now create dataset dependent widgets.

Dataset Widgets

# ... Sample Data & Widget Creation ...

# ... (Creation of markdownConfig e.t.c)

# Dataset configuration: `service` is the name of the blueprint in Port
services_dataset = use_dataset("service")

table_config, table_id = create_table_explorer_widget(
    title="Services",
    dataset=services_dataset,
    excludedFields=["properties.readme"],
)

pie_chart_config, pie_chart_id = create_entities_pie_chart_widget(
    title="Languages", dataset=services_dataset, property="property#language"
)

pr_chart_config, pr_chart_id = create_entities_number_chart_widget(
    title="Avg Pull Requests",
    blueprint_id="githubPullRequest",
    description="Hpw many PRs do we open daily",
)

# Dashboard Layout Definition
dashboard_layout = {
    "id": "myDashboardWidget",  # This is optional, as Port can auto-generate IDs
    "type": "dashboard-widget",
    "layout": [
        # previous configuration: markdown and quote widgets,
        {
            "height": 400,
            "columns": [
                {"id": pie_chart_id, "size": 6},
                {"id": pr_chart_id, "size": 6},
            ],
        },
        {"height": 400, "columns": [{"id": table_id, "size": 12}]},
    ],
}

widgets_config = {
    **dashboard_layout,  # Embed the layout structure
    "widgets": [
        markdown_config,
        quote_config,
        pie_chart_config,
        pr_chart_config,
        table_config
    ],
}

print(widgets_config)

6. Now you can run the pulumi up command again to update the page.

Typescript

import * as pulumi from "@pulumi/pulumi";
import * as port from "@port-labs/port";
import * as fs from "fs"; // Assuming we use Node's 'fs' module for file reading

// ------------------ Widget Helper Functions ------------------

interface WidgetConfig {
  // Sample interface, adjust as needed
  id: string;
  title: string;
  type: string;
  icon?: string; // Optional properties
  description?: string;
  markdown?: string;
  blueprint?: string;
  displayMode?: string;
  dataset?: any;
  excludedFields?: string[];
  property?: string;
  calculationBy?: string;
  urlType?: string;
  // ... other widget properties
}

function generateWidgetId(title: string, widgetType: string): string {
  const titleWords = title.split(" ");
  const camelCaseTitle =
    titleWords[0].toLowerCase() +
    titleWords
      .slice(1)
      .map((word) => word)
      .join("");
  const baseId = `${camelCaseTitle}${widgetType}`;

  // Ensure the length does not exceed the limit
  const maxLength = 20; // Replace with the correct limit if needed
  return baseId.substring(0, maxLength);
}

function createMarkdownWidget(
  title: string,
  description: string,
  markdownContent: string
): [WidgetConfig, string] {
  const widgetId = generateWidgetId(title, "markdown");
  const widgetConfig: WidgetConfig = {
    title,
    icon: "BlankPage",
    markdown: markdownContent,
    type: "markdown",
    description,
    id: widgetId,
  };
  return [widgetConfig, widgetId];
}

function createTableExplorerWidget(
  title: string,
  dataset: any,
  excludedFields: string[] = ["properties.readme"]
): [WidgetConfig, string] {
  const widgetId = generateWidgetId(title, "table-entities-explorer");
  const widgetConfig: WidgetConfig = {
    displayMode: "widget", // Assuming  this property exists
    title,
    type: "table-entities-explorer",
    dataset,
    id: widgetId,
    excludedFields,
  };
  return [widgetConfig, widgetId];
}

function createEntitiesPieChartWidget(
  title: string,
  dataset: any,
  property: string
): [WidgetConfig, string] {
  const widgetId = generateWidgetId(title, "entities-pie-chart");
  const widgetConfig = {
    title,
    icon: "PieChart",
    type: "entities-pie-chart",
    dataset,
    property,
    id: widgetId,
  };
  return [widgetConfig, widgetId];
}

function createIframeWidget(
  title: string,
  url: string,
  urlType: string = "public",
  description: string = ""
): [WidgetConfig, string] {
  const widgetId = generateWidgetId(title, "iframe-widget");
  const widgetConfig = {
    title,
    description,
    icon: "Code",
    urlType,
    url,
    type: "iframe-widget",
    id: widgetId,
  };
  return [widgetConfig, widgetId];
}

function createEntitiesNumberChartWidget(
  title: string,
  blueprintId: string,
  dataset: any = [],
  func: "average" | "count" | "sum" = "average",
  measureTimeBy: string = "$createdAt",
  averageOf: "day" | "week" | "month" = "day",
  description: string = ""
): [WidgetConfig, string] {
  const widgetId = generateWidgetId(title, "entities-number-chart");
  const widgetConfig = {
    blueprint: blueprintId,
    calculationBy: "entities",
    title,
    description,
    type: "entities-number-chart",
    icon: "Calculator",
    dataset,
    func,
    measureTimeBy,
    averageOf,
    unit: "custom",
    unitCustom: "per day",
    id: widgetId,
  };
  return [widgetConfig, widgetId];
}

// ------------------ Other Helper Functions ------------------

function readMarkdownFile(filePath: string): string {
  return fs.readFileSync(filePath, "utf-8");
}

function useDataset(blueprintId: string): any {
  // Type may vary depending on your provider
  return {
    combinator: "and",
    rules: [{ operator: "=", value: blueprintId, property: "$blueprint" }],
  };
}

// ------------------ Sample Data & Widget Creation ------------------

const servicesDataset = useDataset("service");
const githubPrDataset = useDataset("githubPullRequest");

const filePath = "microservices.md";
const markdownContent = readMarkdownFile(filePath);

const [markdownConfig, markdownId] = createMarkdownWidget(
  "Service Guide",
  "Services are typically organized around business capabilities...",
  markdownContent
);

// Table Explorer Widget
const [tableConfig, tableId] = createTableExplorerWidget(
  "Services",
  servicesDataset,
  ["properties.readme", "properties.slack"]
);

// Entities Pie Chart Widget
const [pieChartConfig, pieChartId] = createEntitiesPieChartWidget(
  "Languages",
  servicesDataset,
  "property#language"
);

// Iframe Widget
const [quoteConfig, quoteId] = createIframeWidget(
  "Quote of the Day",
  "https://kwize.com/quote-of-the-day/embed/&txt=0"
);

// Entities Number Chart Widget
const [prChartConfig, prChartId] = createEntitiesNumberChartWidget(
  "Avg Pull Requests",
  "githubPullRequest",
  githubPrDataset,
  "average",
  "$createdAt",
  "day",
  "How many PRs do we open daily?"
);

// ------------------ Dashboard Layout ------------------

const dashboardLayout = {
  id: "myDashboardWidget", // Optional
  type: "dashboard-widget",
  layout: [
    {
      // Row 1
      columns: [
        { id: markdownId, size: 6 }, // Markdown Widget (half width)
        { id: pieChartId, size: 6 }, // Pie Chart Widget (half width)
      ],
      height: 400,
    },
    {
      // Row 2
      columns: [
        { id: quoteId, size: 12 }, // Quote Widget (half width)
        { id: prChartId, size: 6 }, // PR Chart Widget (half width)
      ],
      height: 400,
    },
    {
      // Row 3
      columns: [
        { id: tableId, size: 12 }, // Table Widget (full width)
      ],
      height: 400,
    },
  ],
};

const widgetsConfig = {
  ...dashboardLayout,
  widgets: [
    markdownConfig,
    pieChartConfig,
    quoteConfig,
    prChartConfig,
    tableConfig,
  ],
};

// ------------------ Page Creation ------------------

export const microserviceDashboardPage = new port.Page(
  "microservice-overview-page-resource",
  {
    identifier: "microservice_overview_page",
    title: "Microservices Dashboard",
    icon: "Microservice",
    type: "dashboard",
    widgets: [JSON.stringify(widgetsConfig)],
  }
);

Properties

When creating a dashboard page, you can set the following properties:

Field	Description	Required
Title	Dashboard page title	true
Identifier	The dashboard identifier. This is used to reference the page in various places within your portal and is automatically generated when you create the page.	true
Description	A description of the dashboard. Supports markdown links ([link text](https://www.link.com))	false
Icon	The page icon	false

Add new widgets

A dashboard can include any of the supported widgets.

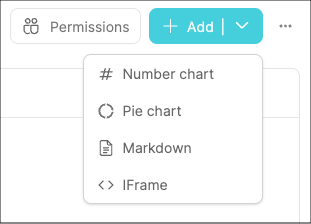

To add a new widget, click on the + Widget button in the top right corner of the dashboard page and choose your desired type.

Reorder and resize widgets

Widgets can be expanded and/or moved within a dashboard page:

• To move a widget, drag it from the top to your desired position.

• To resize a widget, hover over one of its sides, then click and drag it to expand/shrink it.

Dashboard filters

Dashboard filters allow you to apply selected filters across all supported widgets within a dashboard at once.
This makes it easier to explore data consistently, without having to filter each widget individually.

Supported widgets

Dashboard filters currently apply to the following widgets:

• Number chart
• Pie chart
• Line chart
• Table

Supported filter types

When creating a dashboard filter, you can choose between:

• Basic properties - Meta properties that apply across all blueprints in the dashboard.
• Blueprint-specific properties - Properties from a specific blueprint that is selected in one or more widgets in the dashboard.

The blueprint dropdown will only show blueprints that are used in widgets within the dashboard. For example, if a widget uses the microservice blueprint, microservice will appear as an option in the filter dropdown.

Filter scope

Filters applied to a specific blueprint will only affect widgets that are relevant to that blueprint in the dashboard.
Filters applied to basic properties will affect all supported widgets across all blueprints.

Basic properties

When selecting Basic properties, you can filter on the following meta properties:

• Owning teams:
  • Filter entities based on selected team(s).
  • Use the My Teams option to dynamically filter entities relevant to the current user.
  • Applies only to blueprints that include an Owning Team property.
• Title: Filter entities by their entity title using different string operators.
• Identifier: Filter entities by their identifier using different string operators.

Blueprint properties

When selecting a specific blueprint (e.g., service), you can filter on any property defined for that blueprint, including:

• Owning teams: Filter entities of that specific blueprint based on selected team(s). This differs from filtering on owning team using basic properties, which applies across all blueprints.
• Any other blueprint property: Filter on any property defined in the selected blueprint using the appropriate comparison operators for that property type.

For example, you can filter on owning team across all dashboard blueprints by selecting Basic properties → Owning teams, or you can filter on owning team only for the service blueprint by selecting Service → Owning teams.

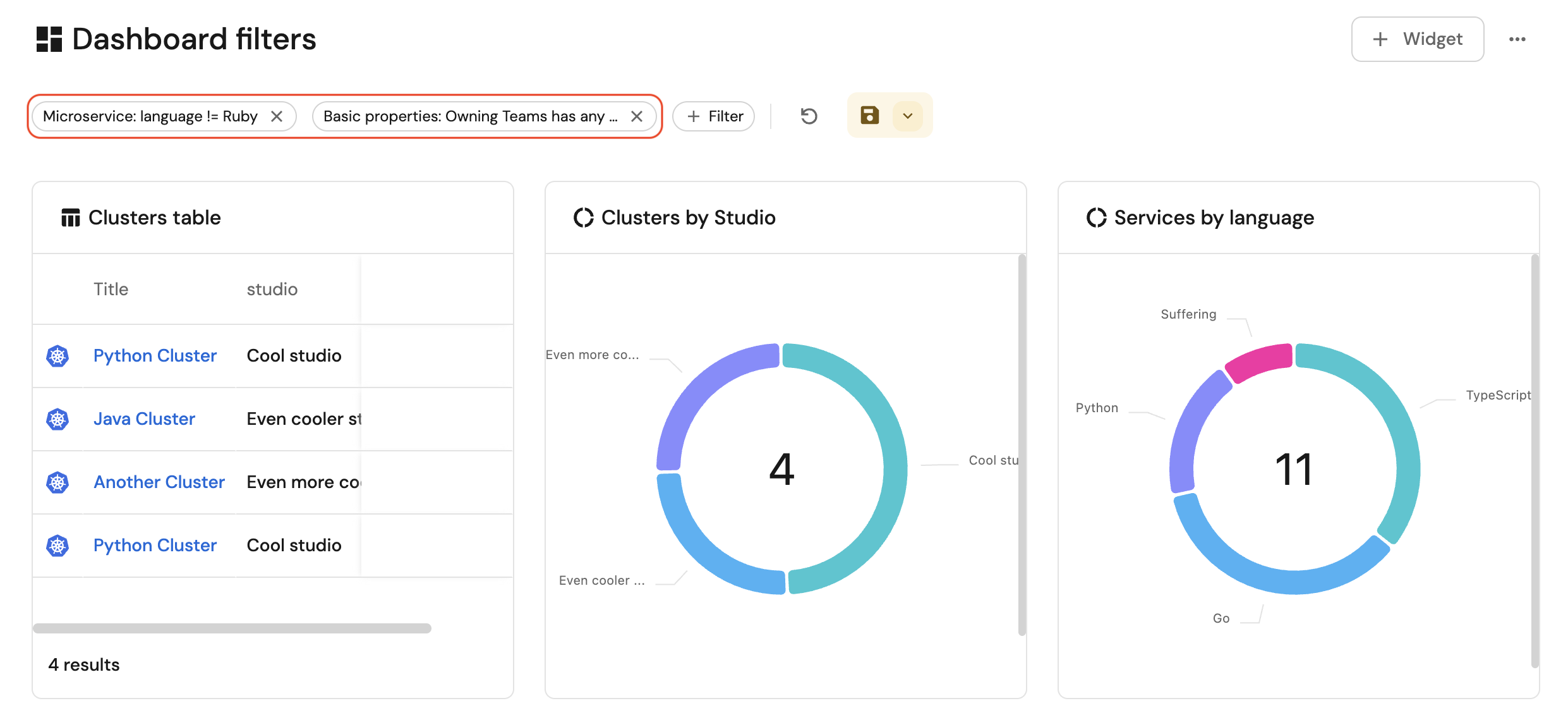

Below is an example dashboard with two types of filters applied:

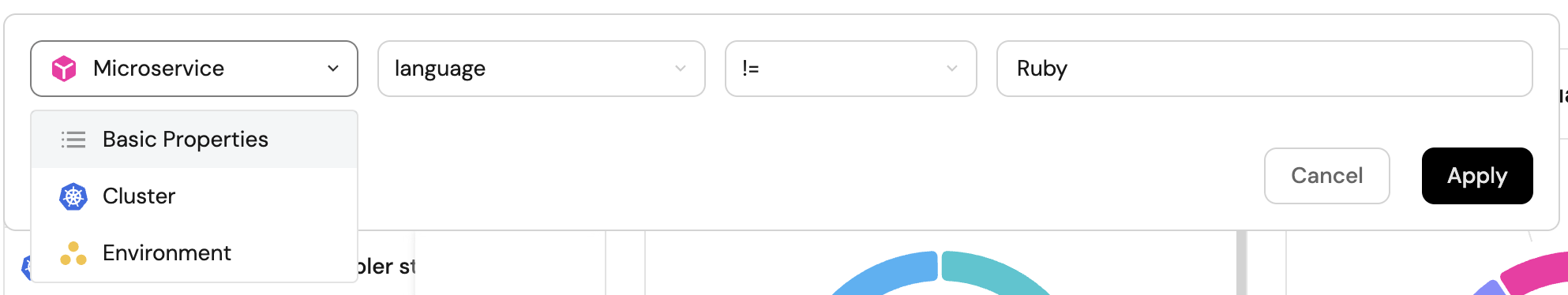

1. A Blueprint properties filter on the microservice blueprint that excludes entities where language = Ruby. This filter only affects widgets that display microservice data.
2. A Basic properties filter on Owning teams, which applies to all supported widgets in the dashboard, regardless of blueprint.

In the example, the Services by language widget reflects the blueprint filter by omitting microservices with language = Ruby, while every widget is narrowed by the Owning teams filter to show only entities associated with the selected team(s).

Permissions

Admin role: As an admin (or a member with edit permissions for the dashboard), you can add, edit, or remove filters from the dashboard page. Then, save the view to apply it for other users.

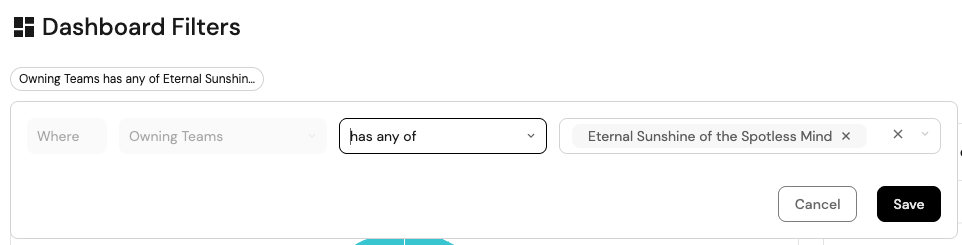

Member role: As a member, you can view and edit the operator and value of the current filters within the page (unless the page is locked).

"Experience" dashboards

When creating a dashboard, you can choose to create a new experience - a predefined dashboard with ready-made widgets designed to visualize and track specific use cases.

Some of the experiences will automatically expand your data model by creating new blueprints and/or self-service actions in your portal.

To create an experience dashboard:

1. Go to the Catalog page of your portal.
2. In the left sidebar, click on +, then select New experience.
3. Choose from the available experience types.

Available experiences

Experiences are divided into two categories:

1. Engineering Intelligence

Experience	Description
DORA metrics	Optimize your development performance with DORA metrics in your portal. Includes widgets to track deployment frequency, lead time, change failure rate, and mean time to recovery.
Portal feedback	Create a portal feedback system to gather and manage user feedback. Helps you collect insights from developers using your portal.
Survey	Run a survey in Port and see results in your catalog. Useful for gathering team input and tracking responses.

2. Standards

Experience	Description
Scorecard	Track and visualize standards compliance across your software catalog using scorecards.
Initiative	Monitor and manage engineering initiatives with dedicated tracking widgets.
