An insecure cloud resource is a task like any other: something needs to change, and the right fix can often be delegated to a coding agent. This guide applies the same autonomous ticket resolution (ATR) pattern used for tickets and vulnerabilities to cloud misconfigurations.

Many organizations have strict policies requiring that all cloud resources meet specific security standards:

Data storage must be encrypted at rest
S3 buckets must not be publicly accessible
ElastiCache must have deletion protection enabled
RDS instances must be private and encrypted

Relying on manual checks or ad-hoc fixes is error-prone and delays remediation. With Port + Claude Code, you can enforce policies at creation time and generate infrastructure-as-code (IaC) patches automatically.

This guide demonstrates how to create an AI-powered workflow that automatically detects insecure cloud resources and generates Terraform patches to remediate security violations.

Workflow diagram: an RDS instance creation event triggers Claude Code remediation via GitHub Actions

Common use cases

Enforce security policies by detecting and fixing unencrypted storage, public access, or missing deletion protection
Reduce manual security reviews by automating the detection and remediation of common misconfigurations

Common use cases

Enforce security policies by detecting and fixing unencrypted storage, public access, or missing deletion protection.
Reduce manual security reviews by automating the detection and remediation of common misconfigurations.
Maintain compliance by ensuring all cloud resources meet security requirements automatically.

Prerequisites

This guide assumes the following:

You have access to Port and have completed the onboarding process
You have access to workflows
You have installed Port's AWS integration (or GCP/Azure)
You have deployed the claude-backend.yaml GitHub Actions workflow described in the Trigger Claude Code from Port guide, along with its secrets (PORT_CLIENT_ID, PORT_CLIENT_SECRET, PORT_GITHUB_TOKEN, ANTHROPIC_API_KEY). The workflow below dispatches it directly, so you only need that GitHub Actions workflow, not the Run Claude Code self-service action from that guide.

Multi-cloud and multi-agent support

While this guide focuses on AWS RDS instances and uses Claude Code, the same approach can be applied to other cloud providers and resource types by adjusting the blueprint schemas and security policies. You can also use other AI coding agents like GitHub Copilot or Gemini to generate the infrastructure-as-code patches by swapping the dispatched GitHub Actions workflow.

Set up data model

We need to create blueprints to support our cloud resource security workflow. These blueprints will track cloud resources and their security compliance status.

Create RDS Instance blueprint

When installing the AWS integration in Port, the AWS Account blueprint is created by default.
However, the RDS Instance blueprint is not created automatically so we will need to create it manually.

Go to the builder page in Port.
Click on + Blueprint.
Click on the {...} Edit JSON button.

Copy and paste the following JSON configuration:

RDS Instance blueprint (Click to expand)

{
  "identifier": "rdsInstance",
  "description": "This blueprint represents an AWS RDS DBInstance in our context lake",
  "title": "RDS Instance",
  "icon": "AWS",
  "schema": {
    "properties": {
      "link": {
        "type": "string",
        "format": "url",
        "title": "Link"
      },
      "dbInstanceClass": {
        "type": "string",
        "title": "DB Instance Class"
      },
      "dbInstanceStatus": {
        "type": "string",
        "title": "DB Instance Status"
      },
      "engine": {
        "type": "string",
        "title": "Engine"
      },
      "storageType": {
        "type": "string",
        "title": "Storage Type"
      },
      "engineVersion": {
        "type": "string",
        "title": "Engine Version"
      },
      "port": {
        "type": "number",
        "title": "Port"
      },
      "allocatedStorage": {
        "type": "number",
        "title": "Allocated Storage"
      },
      "endpoint": {
        "type": "string",
        "title": "Endpoint"
      },
      "multiAZ": {
        "type": "boolean",
        "title": "Multi-AZ"
      },
      "deletionProtection": {
        "type": "boolean",
        "title": "Deletion Protection"
      },
      "availabilityZone": {
        "type": "string",
        "title": "Availability Zone"
      },
      "masterUsername": {
        "type": "string",
        "title": "Master Username"
      },
      "publicAccess": {
        "type": "boolean",
        "title": "Public Access"
      },
      "vpcSecurityGroups": {
        "type": "array",
        "items": {
          "type": "string"
        },
        "title": "VPC Security Groups"
      },
      "arn": {
        "type": "string",
        "title": "ARN"
      },
      "storageEncrypted": {
        "icon": "DefaultProperty",
        "type": "boolean",
        "title": "Storage Encrypted"
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "aggregationProperties": {},
  "relations": {
    "account": {
      "title": "Account",
      "target": "awsAccount",
      "required": true,
      "many": false
    }
  }
}

Click Create to save the blueprint.

Update integration mapping

Go to the data sources page in Port.
Select the AWS integration.

Add the following YAML block into the editor to ingest storage data from AWS:

AWS integration configuration (Click to expand)

deleteDependentEntities: true
createMissingRelatedEntities: true
enableMergeEntity: true
resources:
  - kind: AWS::Organizations::Account
    selector:
      query: 'true'
    port:
      entity:
        mappings:
          identifier: .Id
          title: .Name
          blueprint: '"awsAccount"'
          properties:
            arn: .Arn
            email: .Email
            status: .Status
            joined_method: .JoinedMethod
            joined_timestamp: .JoinedTimestamp | sub(" "; "T")
  - kind: AWS::RDS::DBInstance
    selector:
      query: 'true'
      useGetResourceAPI: 'true'
    port:
      entity:
        mappings:
          identifier: .Identifier
          title: .Properties.DBInstanceIdentifier
          blueprint: '"rdsInstance"'
          properties:
            link: >-
              'https://console.aws.amazon.com/go/view?arn=' +
              .Properties.DBInstanceArn
            dbInstanceClass: .Properties.DBInstanceClass
            dbInstanceStatus: .Properties.DBInstanceStatus
            engine: .Properties.Engine
            storageType: .Properties.StorageType
            engineVersion: .Properties.EngineVersion
            port: .Properties.Endpoint.Port
            allocatedStorage: .Properties.AllocatedStorage
            endpoint: .Properties.Endpoint.Address
            multiAZ: .Properties.MultiAZ
            deletionProtection: .Properties.DeletionProtection
            availabilityZone: .Properties.AvailabilityZone
            masterUsername: .Properties.MasterUsername
            publicAccess: .Properties.PubliclyAccessible
            vpcSecurityGroups: .Properties.VpcSecurityGroups
            arn: .Properties.DBInstanceArn
            instance_id: .Properties.InstanceId
          relations:
            account: .__AccountId

Click Save & Resync to apply the mapping.

Build the workflow

We will build a workflow that triggers automatically when a new RDS instance is added to the catalog and violates security policies, then dispatches Claude Code to remediate it.

Go to the Workflows page of your portal.
Click on the + Workflow button in the top-right corner.
Click on the Skip to editor button.

Copy and paste the workflow JSON below into the editor to replace the example workflow:

Insecure RDS remediation workflow (Click to expand)

Repository configuration

Replace <YOUR_GITHUB_OCEAN_INTEGRATION_ID> with your GitHub Ocean integration's installation ID, <GITHUB_ORG> with your GitHub organization, <YOUR-BACKEND-REPOSITORY> with the repository that hosts claude-backend.yaml, and <YOUR-IAC-REPOSITORY> with the repository containing your Terraform configuration.

{
  "identifier": "insecure_rds_remediation",
  "title": "Insecure RDS Remediation",
  "icon": "AmazonRDS",
  "description": "Detects insecure RDS instances and triggers Claude Code to generate a Terraform remediation patch",
  "nodes": [
    {
      "identifier": "trigger",
      "title": "On RDS Instance Created",
      "icon": "AmazonRDS",
      "config": {
        "type": "EVENT_TRIGGER",
        "event": {
          "type": "ENTITY_CREATED",
          "blueprintIdentifier": "rdsInstance"
        },
        "condition": {
          "type": "JQ",
          "expressions": [
            ".diff.after.properties.deletionProtection == false",
            ".diff.after.properties.storageEncrypted == false",
            ".diff.after.properties.publicAccess == true"
          ],
          "combinator": "or"
        }
      }
    },
    {
      "identifier": "trigger_claude_code_remediation",
      "title": "Trigger Claude Code Remediation",
      "icon": "Github",
      "description": "Dispatch the Claude Code backend workflow to generate a Terraform patch and open a PR",
      "config": {
        "type": "INTEGRATION_ACTION",
        "installationId": "<YOUR_GITHUB_OCEAN_INTEGRATION_ID>",
        "integrationProvider": "github-ocean",
        "integrationInvocationType": "dispatch_workflow",
        "integrationActionExecutionProperties": {
          "org": "<GITHUB_ORG>",
          "repo": "<YOUR-BACKEND-REPOSITORY>",
          "workflow": "claude-backend.yaml",
          "workflowInputs": {
            "repo_name": "<YOUR-IAC-REPOSITORY>",
            "command": "Here is the current configuration of the RDS instance: {{ .outputs.trigger.diff.after }}.\n\nGenerate a Terraform patch that remediates the following misconfigurations:\n1. Ensure the RDS instance is not publicly accessible (set publicly_accessible = false).\n2. Enable deletion protection (set deletion_protection = true).\n3. Ensure storage is encrypted (set storage_encrypted = true).\n\nThe Terraform must:\n- Be compatible with the existing AWS provider configuration.\n- Preserve existing identifiers (db_instance_identifier).\n- Only update the relevant security fields.\n- If an existing RDS file (e.g., rds.tf or main.tf) exists, append the fix there\n- If no such file exists, create a new file named rds_remediation.tf\nDo not overwrite unrelated files.\n\nAfter generating the code, open a PR with a description summarizing what was fixed and why."
          },
          "reportWorkflowStatus": true
        }
      }
    }
  ],
  "connections": [
    {
      "sourceIdentifier": "trigger",
      "targetIdentifier": "trigger_claude_code_remediation"
    }
  ]
}

Click Save to save the workflow.

Workflow scope

This workflow triggers on any RDS instance creation that violates security policies. You can modify the condition to be more specific or add additional security checks based on your organization's requirements.

Configure the workflow

After publishing, you need to replace placeholder values and adjust the Claude Code backend workflow so it no longer depends on a Port action run.

Configure the GitHub integration action

In the trigger_claude_code_remediation node, set installationId to your GitHub Ocean integration's installation ID. You can find this in the Data sources page of your portal. Update org and repo in integrationActionExecutionProperties to point at the repository that hosts claude-backend.yaml, and set workflowInputs.repo_name to the IaC repository Claude Code should check out and patch.

Update the Claude Code backend workflow

The claude-backend.yaml workflow from the Trigger Claude Code from Port guide reports progress back to Port using a self-service action's run_id. Since this guide dispatches the workflow directly and tracks status with reportWorkflowStatus: true on the node, update that file as follows:

Remove the "Update Port Action Run Status to Success" and "Update Port Action Run Status to Failed" steps entirely. They patch an action run that no longer exists in this flow.

In the "Create Claude Code Execution Entity in Port" step, drop the if: ${{ inputs.run_id != '' }} condition so the entity is always created, and swap the identifier source from the unused run_id input to GitHub's own github.run_id context:

- name: Create Claude Code Execution Entity in Port
  uses: port-labs/port-github-action@v1
  with:
    clientId: ${{ secrets.PORT_CLIENT_ID }}
    clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
    baseUrl: https://api.port.io
    operation: UPSERT
    identifier: "claude-exec-${{ github.run_id }}"
    title: "claude-exec-${{ github.run_id }}"
    icon: "Code"
    blueprint: "claudeCodeExecution"
    properties: |-
      {
        "prompt": ${{ toJSON(inputs.command) }},
        "status": "${{ steps.parse_results.outputs.conclusion == 'success' && 'success' || 'failed' }}",
        "executionTime": ${{ steps.parse_results.outputs.duration_ms }},
        "claudeResponse": ${{ toJSON(steps.parse_results.outputs.claude_response) }},
        "inputTokens": ${{ steps.parse_results.outputs.input_tokens }},
        "outputTokens": ${{ steps.parse_results.outputs.output_tokens }},
        "totalCost": ${{ steps.parse_results.outputs.total_cost }},
        "repository": "${{ inputs.repo_name }}"
      }
    relations: |
      {
        "ai_coding_agent": "Claude",
        "repository": "${{ inputs.repo_name }}"
      }

The run_id workflow input can stay declared but unused. Leaving it in place is harmless.

Test the workflow

To test the remediation workflow:

Create (or ingest) a cloud resource such as RDS instance that violates one of the policies (e.g., publicAccess = true).
Port triggers the workflow automatically.
Claude Code generates a Terraform patch and opens a pull request in your repository.
Review and merge the PR.

You can follow each run from the Workflow runs tab of your portal.

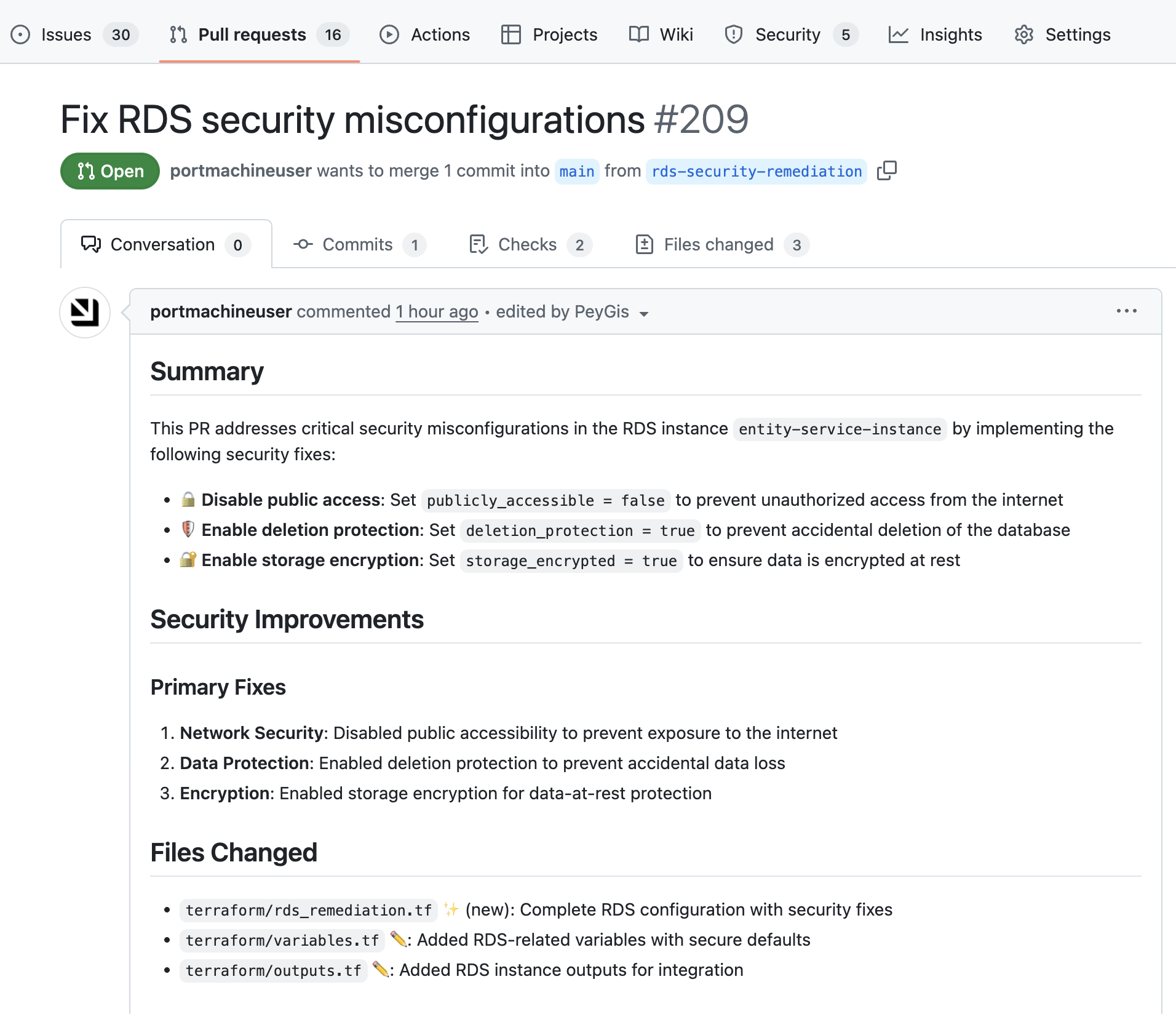

GitHub PR fixing RDS security misconfigurations

Extend to other resource types

You can extend this approach to other cloud resources by creating similar blueprints and workflows:

S3 Bucket security

Create an S3 bucket blueprint with properties like:

publicAccessBlock
encryptionAtRest
versioningEnabled

ElastiCache security

Create an ElastiCache blueprint with properties like:

deletionProtection
encryptionAtRest
networkType

Security Group rules

Create a security group blueprint to monitor for overly permissive rules:

ingressRules
egressRules
cidrBlocks

Common use cases​

Common use cases​

Prerequisites​

Set up data model​

Create RDS Instance blueprint​

Update integration mapping​

Build the workflow​

Configure the workflow​

Configure the GitHub integration action

Update the Claude Code backend workflow

Test the workflow​

Extend to other resource types​

S3 Bucket security​

ElastiCache security​

Security Group rules​

Related guides​

Common use cases

Common use cases

Prerequisites

Set up data model

Create RDS Instance blueprint

Update integration mapping

Build the workflow

Configure the workflow

Test the workflow

Extend to other resource types

S3 Bucket security

ElastiCache security

Security Group rules

Related guides
