EKS as a service action (EKSaaS)

This guide demonstrates how to integrate Port and Upbound to provide EKS as a Service (EKSaaS). You'll use Port as a software catalog and self-service hub for developers, and Upbound as the platform management backend.

Available Github Integrations

This guide includes one or more steps that require integration with GitHub.
Port supports two GitHub integrations:

GitHub (Legacy) - uses a GitHub app, which is soon to be deprecated.
GitHub (Ocean) - uses the Ocean framework, recommended for new integrations.

Both integration options are present in this guide via tabs, choose the one that fits your needs.

By the end of this guide, you will be able to:

Request new EKS clusters through Port's self-service actions.
Approve or deny cluster requests with a GitOps workflow.
Create clusters directly (bypassing the approval process).
Delete existing clusters.
Track all cluster resources in Port's software catalog.

Clean slate start

This guide assumes a clean starting point with an empty Upbound organization, an empty Git repository, and an empty Port environment.

Prerequisites

This guide assumes the following:

You have a Port account and have completed the onboarding process.
You have your Port CLIENT_ID and CLIENT_SECRET (how to find your credentials).
You have set up an Upbound organization with:
- An EKSaaS configuration.
- At least one control plane deployed (save the identifiers).
- An API token (create one in My Account → API Tokens).
Install the GitHub integration:

GitHub (Legacy)
GitHub (Ocean)

Install Port's GitHub app and ensure it has access to your repository.

Your GitHub repository has GitHub Actions enabled for creating and approving pull requests.

Set up data model

Create the following blueprints in Port. They must be created in this order due to dependencies.

Upbound Control Plane blueprint

Go to your Builder page.
Click on + Blueprint.
Click on the {...} button in the top right corner, and choose Edit JSON.
Add this JSON schema:

Upbound Control Plane blueprint (click to expand)

{
  "identifier": "upbound_control_plane",
  "title": "Upbound Control Plane",
  "icon": "Cluster",
  "schema": {
    "properties": {},
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "relations": {}
}

Click Save.

EKS Cluster blueprint

Go to your Builder page.
Click on + Blueprint.
Click on the {...} button in the top right corner, and choose Edit JSON.
Add this JSON schema:

EKS Cluster blueprint (click to expand)

{
  "identifier": "eks_cluster",
  "title": "EKS Cluster",
  "icon": "Cluster",
  "schema": {
    "properties": {
      "node_count": {
        "icon": "Node",
        "title": "Node Count",
        "type": "number",
        "description": "The cluster's node count"
      },
      "node_size": {
        "icon": "Node",
        "title": "Node Size",
        "description": "The cluster's node size",
        "type": "string",
        "enum": ["small", "medium", "large"],
        "enumColors": {
          "small": "lightGray",
          "medium": "lightGray",
          "large": "lightGray"
        }
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {
    "claim_file_url": {
      "title": "Claim file URL",
      "icon": "Github",
      "calculation": "\"https://github.com/port-demo/port-upbound-demo/blob/main/.up/clusters/\" + .identifier + \".yaml\"",
      "type": "string",
      "format": "url"
    }
  },
  "relations": {
    "upbound_control_plane": {
      "title": "Upbound Control Plane",
      "description": "The Upbound control plane for this cluster",
      "target": "upbound_control_plane",
      "required": false,
      "many": false
    }
  }
}

Click Save.

EKS Cluster Request blueprint

Go to your Builder page.
Click on + Blueprint.
Click on the {...} button in the top right corner, and choose Edit JSON.
Add this JSON schema:

EKS Cluster Request blueprint (click to expand)

{
  "identifier": "eks_cluster_request",
  "title": "EKS Cluster Request",
  "icon": "Book",
  "schema": {
    "properties": {
      "request_pr_url": {
        "icon": "Github",
        "title": "Request PR URL",
        "type": "string",
        "description": "The cluster request's PR URL",
        "format": "url"
      },
      "request_pr_number": {
        "icon": "Github",
        "title": "Request PR Number",
        "type": "number",
        "minimum": 0
      },
      "node_count": {
        "icon": "Node",
        "title": "Node Count",
        "type": "number",
        "description": "Amount of nodes for this cluster"
      },
      "node_size": {
        "icon": "Node",
        "title": "Node Size",
        "type": "string",
        "description": "The node size for the cluster nodes",
        "enum": ["small", "medium", "large"],
        "enumColors": {
          "small": "lightGray",
          "medium": "lightGray",
          "large": "lightGray"
        }
      },
      "status": {
        "icon": "BlankPage",
        "title": "Status",
        "description": "Status of the cluster request (Pending/Approved)",
        "type": "string",
        "default": "Pending",
        "enum": ["Pending", "Approved", "Denied"],
        "enumColors": {
          "Pending": "yellow",
          "Approved": "green",
          "Denied": "red"
        }
      }
    },
    "required": []
  },
  "mirrorProperties": {},
  "calculationProperties": {},
  "relations": {
    "eks_cluster": {
      "title": "EKS Cluster",
      "description": "The cluster created for this request",
      "target": "eks_cluster",
      "required": false,
      "many": false
    },
    "upbound_control_plane": {
      "title": "Upbound Control Plane",
      "description": "The control plane this cluster was requested for",
      "target": "upbound_control_plane",
      "required": false,
      "many": false
    }
  }
}

Click Save.

Set up the backend

Create repository secrets

Follow GitHub's guide to add the following secrets to your repository:

Secret	Description
`UPBOUND_TOKEN`	Your Upbound API token
`PORT_CLIENT_ID`	Your Port client ID
`PORT_CLIENT_SECRET`	Your Port client secret

Create the directory structure

In your repository, create the following structure:

.github/
  workflows/
    apply-clusters.yaml
    approve-cluster-request.yaml
    delete-cluster.yaml
    deny-cluster-request.yaml
    new-cluster-request.yaml
.up/
  clusters/
  examples/
    cluster.yaml

Create the GitHub workflows

Create the following workflow files in .github/workflows/:

apply-clusters.yaml (click to expand)

name: Apply Cluster changes

on:
  workflow_dispatch:
    inputs:
      port_context:
        type: string

jobs:
  apply-clusters:
    runs-on: ubuntu-latest
    env:
      UPBOUND_ORG_ID: <ENTER_UPBOUND_ORG_ID>
    steps:
      - uses: actions/checkout@v4
        with:
          persist-credentials: true
          ref: main
      - name: Install Kubectl
        uses: azure/setup-kubectl@v3
        id: install-kubectl
      - name: Install Upbound CLI
        run: |
          curl -sL "https://cli.upbound.io" | sh
          sudo mv up /usr/local/bin/
      - name: Connect to Upbound using CLI and apply manifests to all of the control planes
        run: |
          up login -t ${{ secrets.UPBOUND_TOKEN }}
          cd .up/clusters
          for CONTROL_PLANE in */ ; do
            CONTROL_PLANE=${CONTROL_PLANE%/}

            echo "Fetching kubeconfig for ${CONTROL_PLANE}"
            up ctp kubeconfig get -a ${{ env.UPBOUND_ORG_ID }} ${CONTROL_PLANE} -f kubeconfig.yaml --token ${{ secrets.UPBOUND_TOKEN }}
            echo "Applying manifests"
            if find "$CONTROL_PLANE" -maxdepth 1 -type f -name "*.yaml" | read -r; then
              kubectl --kubeconfig kubeconfig.yaml apply -f ./${CONTROL_PLANE}/ --recursive
            else
              echo "Control plane directory is empty"
              # exit 1
            fi
          done

approve-cluster-request.yaml (click to expand)

name: Approve new cluster PR

on:
  workflow_dispatch:
    inputs:
      port_context:
        required: true
        description: "Port's context"
        type: string

jobs:
  approve-cluster-request-call:
    runs-on: ubuntu-latest

    steps:
      - name: Inform starting of approving EKS cluster request
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          logMessage: "Approving EKS cluster request: ${{ fromJson(inputs.port_context).entity.properties.title }}"

      - uses: actions/checkout@v4
        with:
          persist-credentials: true

      - name: Merge Pull Request
        uses: juliangruber/merge-pull-request-action@v1
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}
          number: ${{ fromJson(inputs.port_context).entity.properties.request_pr_number }}
          method: squash

      - name: "Report new EKS cluster to Port"
        if: ${{ always() }}
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: UPSERT
          identifier: ${{ fromJson(inputs.port_context).entity.properties.title }}
          runId: ${{ fromJson(inputs.port_context).runId }}
          title: ${{ fromJson(inputs.port_context).entity.properties.title }}
          blueprint: eks_cluster
          properties: |
            {
              "node_size": "${{ fromJson(inputs.port_context).entity.properties.node_size }}",
              "node_count": "${{ fromJson(inputs.port_context).entity.properties.node_count }}"
            }
          relations: |
            {
                "upbound_control_plane": "${{ fromJson(inputs.port_context).entity.relations.control_plane }}"
            }

      - name: Inform that EKS cluster request has been approved
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          icon: GitHubActions
          logMessage: "Approved EKS cluster request, and created new Port entity for the EKS cluster🚀 Applying Clusters to Upbound control plane..."

  approve-cluster-request-port:
    runs-on: ubuntu-latest
    steps:
      - uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).context.runId }}
          icon: GitHubActions
          logMessage: "Approving EKS cluster request: ${{ fromJson(inputs.port_context).entity.identifier }}"
      - uses: actions/checkout@v4
        with:
          persist-credentials: true

      - name: Merge Pull Request
        uses: juliangruber/merge-pull-request-action@v1
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}
          number: ${{ fromJson(inputs.port_context).entity.properties.request_pr_number }}
          method: squash

      - name: "Report new EKS cluster to Port"
        if: ${{ always() }}
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          identifier: ${{ fromJson(inputs.port_context).payload.entity.identifier }}
          title: ${{ fromJson(inputs.port_context).payload.entity.identifier }}
          runId: ${{ fromJson(inputs.port_context).context.runId }}
          blueprint: eks_cluster
          properties: |
            {
              "node_size": "${{ fromJson(inputs.port_context).entity.properties.node_size }}",
              "node_count": ${{ fromJson(inputs.port_context).entity.properties.node_count }}
            }
          relations: |
            {
                "upbound_control_plane": "${{ fromJson(inputs.port_context).entity.relations.upbound_control_plane }}"
            }

      - name: "Approve EKS cluster request"
        if: ${{ always() }}
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          identifier: ${{ fromJson(inputs.port_context).payload.entity.identifier }}
          blueprint: eks_cluster_request
          runId: ${{ fromJson(inputs.port_context).context.runId }}
          properties: |
            {
              "status": "Approved",
              "eks_cluster": "${{ fromJson(inputs.port_context).payload.entity.identifier }}"
            }
      - uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).context.runId }}
          icon: GitHubActions
          logMessage: "Approved EKS cluster request, and created new Port entity for the EKS cluster🚀 Applying Clusters to Upbound control plane..."


  apply-cluster-changes:
    uses: ./.github/workflows/apply-clusters.yaml
    if: ${{ always() }}
    secrets: inherit
    needs:
      - approve-cluster-request-call
      - approve-cluster-request-port

  update-port:
    runs-on: ubuntu-latest
    needs:
      - apply-cluster-changes
    if: ${{ always() }}
    steps:
      - name: Inform cluster applied to Upbound
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          logMessage: "Applied cluster to Upbound successfully✅"

delete-cluster.yaml (click to expand)

name: Delete Cluster

on:
  workflow_dispatch:
    inputs:
      port_context:
        required: true
        description: "Port's payload"
        type: string

jobs:
  delete-cluster:
    runs-on: ubuntu-latest
    env:
      UPBOUND_ORG_ID: <ENTER_UPBOUND_ORG_ID>
    steps:
      - name: Inform starting of deleting EKS cluster
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          icon: GithubActions
          logMessage: "Initiating deletion job 🏗️"

      - uses: actions/checkout@v4
        with:
          persist-credentials: true
          ref: main

      - name: Install Kubectl
        uses: azure/setup-kubectl@v3
        id: install-kubectl
      - name: Install Upbound CLI
        run: |
          curl -sL "https://cli.upbound.io" | sh
          sudo mv up /usr/local/bin/

      - uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          icon: GithubActions
          logMessage: "Connecting to Upbound control plane 🛰️"

      - name: Connect to Upbound using CLI + Fetch kubeconfig
        run: |
          up login -t ${{ secrets.UPBOUND_TOKEN }}
          up ctp kubeconfig get -a ${{ env.UPBOUND_ORG_ID }} ${{ fromJson(inputs.port_context).entity.relations.upbound_control_plane }} -f kubeconfig.yaml --token ${{ secrets.UPBOUND_TOKEN }}

      - uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          icon: GithubActions
          logMessage: |
            ❌ Deleting CRDs from Upbound + claim files from the repository for:
              Control plane: ${{ fromJson(inputs.port_context).entity.relations.upbound_control_plane }}
              Cluster: ${{ fromJson(inputs.port_context).entity }} ❌

      - name: Delete cluster from Upbound
        run: |
          kubectl --kubeconfig kubeconfig.yaml delete -f .up/clusters/${{ fromJson(inputs.port_context).entity.relations.upbound_control_plane }}/${{ fromJson(inputs.port_context).context.entity }}.yaml

      - name: Delete cluster yaml file
        run: |
          git rm -f .up/clusters/${{ fromJson(inputs.port_context).entity.relations.upbound_control_plane }}/${{ fromJson(inputs.port_context).context.entity }}.yaml
          git status

      - name: Create Pull Request
        id: create-pr
        uses: peter-evans/create-pull-request@v4
        with:
          add-paths: .up/clusters
          branch: "DELETE-CLUSTER-REQUEST-${{ fromJson(inputs.port_context).entity }}"
          title: "Delete cluster request: ${{ fromJson(inputs.port_context).entity }}"
          commit-message: "Delete cluster in upbound called ${{ fromJson(inputs.port_context).entity.identifier }}"

      - name: Merge Pull Request
        uses: juliangruber/merge-pull-request-action@v1
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}
          number: ${{ steps.create-pr.outputs.pull-request-number }}
          method: squash

      - name: "Delete EKS cluster from Port"
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          identifier: ${{ fromJson(inputs.port_context).entity }}
          runId: ${{ fromJson(inputs.port_context).runId }}
          blueprint: eks_cluster
          operation: DELETE

      - uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          icon: GithubActions
          status: "SUCCESS"
          summary: "Deletion successful🚀"
          logMessage: "Deletion successful ✅ Deleted EKS Cluster Port entity for: ${{ fromJson(inputs.port_context).entity }}"

deny-cluster-request.yaml (click to expand)

name: Deny cluster request

on:
  workflow_dispatch:
    inputs:
      port_context:
        required: true
        description: "Port's payload"
        type: string

jobs:
  deny-cluster-request-port:
    if: github.event.inputs.port_context != ''
    runs-on: ubuntu-latest
    steps:
      - name: Inform starting of denying EKS cluster request
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).context.runId }}
          logMessage: "Denying EKS cluster request: ${{ fromJson(inputs.port_context).entity.identifier }}"

      - uses: actions/checkout@v4
        with:
          persist-credentials: true

      - name: Close Pull Request
        uses: peter-evans/close-pull@v3
        with:
          pull-request-number: ${{ fromJson(inputs.port_context).entity.properties.request_pr_number }}
          comment: "Cluster request ${{ fromJson(inputs.port_context).entity.identifier }} was denied ❌. Pull request closed."
          delete-branch: false
          token: ${{ secrets.GITHUB_TOKEN }}

      - name: "Deny EKS cluster request"
        if: ${{ always() }}
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          identifier: ${{ fromJson(inputs.port_context).entity.identifier }}
          blueprint: eks_cluster_request
          runId: ${{ fromJson(inputs.port_context).context.runId }}
          properties: |
            {
              "status": "Denied"
            }

      - name: Inform that EKS cluster request has been denied
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).context.runId }}
          summary: "Request denied."
          status: "SUCCESS"
          logMessage: "Request updated - status 'denied' ❌"

new-cluster-request.yaml (click to expand)

name: Create new cluster PR

on:
  workflow_dispatch:
    inputs:
      control-plane:
        type: string
        required: true
      cluster-name:
        type: string
        required: true
        description: The cluster name to request
      node-count:
        type: string
        required: false
        description: Number of nodes for the cluster
        default: "1"
      node-size:
        required: false
        description: "Node size"
        type: choice
        default: small
        options:
          - small
          - medium
          - large
      port_context:
        type: string
        required: true
        description: Port Payload

jobs:
  create-cluster-request:
    runs-on: ubuntu-latest
    outputs:
      pr-id: ${{ steps.create-pr.outputs.pull-request-number }}
    steps:
      - name: Inform starting of creating EKS cluster request
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          icon: GithubActions
          logMessage: "Initiating EKS cluster request job 🏗️"

      - uses: actions/checkout@v4
        with:
          persist-credentials: true

      - name: Manipulate YAML file
        run: |
          if [[ ! -f ".up/clusters/${{ inputs.control-plane }}/${{ inputs.cluster-name }}.yaml" ]]; then
            mkdir -p .up/clusters/${{ inputs.control-plane }}
            cp .up/examples/cluster.yaml .up/clusters/${{ inputs.control-plane }}/${{ inputs.cluster-name }}.yaml
          else
            echo "This cluster already exists!"
            exit 1
          fi
          yq -i e '.metadata.name = "${{ inputs.cluster-name }}"' .up/clusters/${{ inputs.control-plane }}/${{ inputs.cluster-name }}.yaml
          yq -i e '.spec.id = "${{ inputs.cluster-name }}"' .up/clusters/${{ inputs.control-plane }}/${{ inputs.cluster-name }}.yaml
          yq -i e '.spec.parameters.nodes.count = ${{ inputs.node-count }}' .up/clusters/${{ inputs.control-plane }}/${{ inputs.cluster-name }}.yaml
          yq -i e '.spec.parameters.nodes.size = "${{ inputs.node-size }}"' .up/clusters/${{ inputs.control-plane }}/${{ inputs.cluster-name }}.yaml
          yq -i e '.spec.writeConnectionSecretToRef.name = "${{ inputs.cluster-name }}-kubeconfig"' .up/clusters/${{ inputs.control-plane }}/${{ inputs.cluster-name }}.yaml

          echo "New cluster's YAML:"
          cat .up/clusters/${{ inputs.control-plane }}/${{ inputs.cluster-name }}.yaml

      - uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          icon: GithubActions
          logMessage: |
            Cluster request information:
              Upbound control plane name: ${{ inputs.control-plane }}
              Cluster name: ${{ inputs.cluster-name }}
              Node size: ${{ inputs.node-size }}
              Node Count: ${{ inputs.node-count }}

            Creating pull request for the new cluster⏳


      - name: Create Pull Request
        id: create-pr
        uses: peter-evans/create-pull-request@v4
        with:
          branch: "CLUSTER-REQUEST-${{ inputs.cluster-name }}"
          title: "New cluster request: ${{ inputs.cluster-name }}"
          commit-message: "Create new cluster in upbound called ${{ inputs.cluster-name }}"

      - name: "Report new EKS cluster request to Port"
        if: ${{ fromJson(inputs.port_context).action == 'request_new_cluster' }}
        uses: port-labs/port-github-action@v1
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          identifier: ${{ inputs.cluster-name }}
          title: ${{ inputs.cluster-name }}
          blueprint: eks_cluster_request
          runId: ${{ fromJson(inputs.port_context).runId }}
          properties: |
            {
              "request_pr_url": "${{ steps.create-pr.outputs.pull-request-url }}",
              "request_pr_number": ${{ steps.create-pr.outputs.pull-request-number }},
              "node_size": "${{ inputs.node-size }}",
              "node_count": "${{ inputs.node-count }}"
            }
          relations: |
            {
                "upbound_control_plane": "${{ inputs.control-plane }}"
            }

      - uses: port-labs/port-github-action@v1
        if: ${{ fromJson(inputs.port_context).action == 'request_new_cluster' }}
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          link: ${{ steps.create-pr.outputs.pull-request-url }}
          icon: GithubActions
          logMessage: "Pull request created: ${{ steps.create-pr.outputs.pull-request-url }}"

      - uses: port-labs/port-github-action@v1
        if: ${{ fromJson(inputs.port_context).action == 'create_new_cluster' }}
        with:
          clientId: ${{ secrets.PORT_CLIENT_ID }}
          clientSecret: ${{ secrets.PORT_CLIENT_SECRET }}
          operation: PATCH_RUN
          runId: ${{ fromJson(inputs.port_context).runId }}
          icon: GithubActions
          logMessage: "Creation job run, auto-approving cluster request..."

  force-approve-request:
    uses: ./.github/workflows/approve-cluster-request.yaml
    if: ${{ fromJson(inputs.port_context).action == 'create_new_cluster' }}
    secrets: inherit
    needs: create-cluster-request
    with:
      pr-id: ${{ needs.create-cluster-request.outputs.pr-id }}
      cluster-name: ${{ inputs.cluster-name }}
      node-count: ${{ inputs.node-count }}
      node-size: ${{ inputs.node-size }}
      run-id: ${{ fromJson(inputs.port_context).runId }}
      control-plane: ${{ inputs.control-plane }}

Create the cluster template

Create the file .up/examples/cluster.yaml with the following content:

cluster.yaml (click to expand)

apiVersion: k8s.starter.org/v1alpha1
kind: KubernetesCluster
metadata:
  name: my-cluster
  namespace: default
spec:
  id: my-cluster
  parameters:
    nodes:
      count: 3
      size: small
    services:
      operators:
        prometheus:
          version: "34.5.1"
  writeConnectionSecretToRef:
    name: my-cluster-kubeconfig

Create the actions

Create the following self-service actions in Port. Remember to replace CHANGE_TO_YOUR_GITHUB_ORG_NAME and CHANGE_TO_YOUR_REPO_NAME with your actual values.

Modification Required

Make sure to replace <GITHUB_ORG> and <GITHUB_REPO> with your GitHub organization and repository names respectively.

Request new cluster action

GitHub (Legacy)
GitHub (Ocean)

Request new cluster action (click to expand)

{
  "identifier": "eks_cluster_request_new_cluster",
  "title": "Request new cluster",
  "icon": "GithubActions",
  "trigger": {
    "type": "self-service",
    "operation": "CREATE",
    "userInputs": {
      "properties": {
        "cluster-name": {
          "title": "Cluster Name",
          "type": "string"
        },
        "node-size": {
          "title": "Node Size",
          "type": "string",
          "default": "small",
          "enum": ["small", "medium", "large"],
          "enumColors": {
            "small": "lightGray",
            "medium": "lightGray",
            "large": "lightGray"
          }
        },
        "node-count": {
          "icon": "DefaultProperty",
          "title": "Node Count",
          "type": "string",
          "default": "1"
        },
        "control-plane": {
          "icon": "DefaultProperty",
          "title": "Upbound control plane",
          "type": "string",
          "blueprint": "upbound_control_plane",
          "format": "entity"
        }
      },
      "required": ["cluster-name", "control-plane"],
      "order": ["control-plane", "cluster-name", "node-size", "node-count"]
    },
    "blueprintIdentifier": "eks_cluster"
  },
  "invocationMethod": {
    "type": "GITHUB",
    "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
    "repo": "CHANGE_TO_YOUR_REPO_NAME",
    "workflow": "new-cluster-request.yaml",
    "workflowInputs": {
      "cluster-name": "{{.inputs.\"cluster-name\"}}",
      "node-size": "{{.inputs.\"node-size\"}}",
      "node-count": "{{.inputs.\"node-count\"}}",
      "control-plane": "{{.inputs.\"control-plane\" | if type == \"array\" then map(.identifier) else .identifier end}}",
      "port_context": {
        "action": "{{ .action.identifier[(\"eks_cluster_\" | length):] }}",
        "runId": "{{.run.id}}"
      }
    },
    "reportWorkflowStatus": true
  },
  "requiredApproval": false
}

Request new cluster action (click to expand)

{
  "identifier": "eks_cluster_request_new_cluster",
  "title": "Request new cluster",
  "icon": "GithubActions",
  "trigger": {
    "type": "self-service",
    "operation": "CREATE",
    "userInputs": {
      "properties": {
        "cluster-name": {
          "title": "Cluster Name",
          "type": "string"
        },
        "node-size": {
          "title": "Node Size",
          "type": "string",
          "default": "small",
          "enum": ["small", "medium", "large"],
          "enumColors": {
            "small": "lightGray",
            "medium": "lightGray",
            "large": "lightGray"
          }
        },
        "node-count": {
          "icon": "DefaultProperty",
          "title": "Node Count",
          "type": "string",
          "default": "1"
        },
        "control-plane": {
          "icon": "DefaultProperty",
          "title": "Upbound control plane",
          "type": "string",
          "blueprint": "upbound_control_plane",
          "format": "entity"
        }
      },
      "required": ["cluster-name", "control-plane"],
      "order": ["control-plane", "cluster-name", "node-size", "node-count"]
    },
    "blueprintIdentifier": "eks_cluster"
  },
  "invocationMethod": {
    "type": "INTEGRATION_ACTION",
    "installationId": "<YOUR_GITHUB_OCEAN_INTEGRATION_ID>",
    "integrationActionType": "dispatch_workflow",
    "integrationActionExecutionProperties": {
      "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
      "repo": "CHANGE_TO_YOUR_REPO_NAME",
      "workflow": "new-cluster-request.yaml",
      "workflowInputs": {
        "cluster-name": "{{.inputs.\"cluster-name\"}}",
        "node-size": "{{.inputs.\"node-size\"}}",
        "node-count": "{{.inputs.\"node-count\"}}",
        "control-plane": "{{.inputs.\"control-plane\" | if type == \"array\" then map(.identifier) else .identifier end}}",
        "port_context": {
          "action": "{{ .action.identifier[(\"eks_cluster_\" | length):] }}",
          "runId": "{{.run.id}}"
        }
      },
      "reportWorkflowStatus": true
    }
  },
  "requiredApproval": false
}

Approve cluster request action

GitHub (Legacy)
GitHub (Ocean)

Approve cluster request action (click to expand)

{
  "identifier": "eks_cluster_request_approve_cluster_request",
  "title": "Approve Cluster Request",
  "icon": "GithubActions",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {},
      "required": []
    },
    "blueprintIdentifier": "eks_cluster_request"
  },
  "invocationMethod": {
    "type": "GITHUB",
    "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
    "repo": "CHANGE_TO_YOUR_REPO_NAME",
    "workflow": "approve-cluster-request.yaml",
    "workflowInputs": {
      "port_context": {
        "runId": "{{.run.id}}",
        "entity": "{{.entity}}"
      }
    },
    "reportWorkflowStatus": true
  },
  "requiredApproval": false
}

Approve cluster request action (click to expand)

{
  "identifier": "eks_cluster_request_approve_cluster_request",
  "title": "Approve Cluster Request",
  "icon": "GithubActions",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {},
      "required": []
    },
    "blueprintIdentifier": "eks_cluster_request"
  },
  "invocationMethod": {
    "type": "INTEGRATION_ACTION",
    "installationId": "<YOUR_GITHUB_OCEAN_INTEGRATION_ID>",
    "integrationActionType": "dispatch_workflow",
    "integrationActionExecutionProperties": {
      "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
      "repo": "CHANGE_TO_YOUR_REPO_NAME",
      "workflow": "approve-cluster-request.yaml",
      "workflowInputs": {
        "port_context": {
          "runId": "{{.run.id}}",
          "entity": "{{.entity}}"
        }
      },
      "reportWorkflowStatus": true
    }
  },
  "requiredApproval": false
}

Deny cluster request action

GitHub (Legacy)
GitHub (Ocean)

Deny cluster request action (click to expand)

{
  "identifier": "eks_cluster_request_deny_cluster_request",
  "title": "Deny cluster request",
  "icon": "Alert",
  "description": "Deny this EKS cluster request",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {},
      "required": []
    },
    "blueprintIdentifier": "eks_cluster_request"
  },
  "invocationMethod": {
    "type": "GITHUB",
    "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
    "repo": "CHANGE_TO_YOUR_REPO_NAME",
    "workflow": "deny-cluster-request.yaml",
    "workflowInputs": {
      "port_context": {
        "entity": "{{.entity}}",
        "runId": "{{.run.id}}"
      }
    },
    "reportWorkflowStatus": true
  },
  "requiredApproval": false
}

Deny cluster request action (click to expand)

{
  "identifier": "eks_cluster_request_deny_cluster_request",
  "title": "Deny cluster request",
  "icon": "Alert",
  "description": "Deny this EKS cluster request",
  "trigger": {
    "type": "self-service",
    "operation": "DAY-2",
    "userInputs": {
      "properties": {},
      "required": []
    },
    "blueprintIdentifier": "eks_cluster_request"
  },
  "invocationMethod": {
    "type": "INTEGRATION_ACTION",
    "installationId": "<YOUR_GITHUB_OCEAN_INTEGRATION_ID>",
    "integrationActionType": "dispatch_workflow",
    "integrationActionExecutionProperties": {
      "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
      "repo": "CHANGE_TO_YOUR_REPO_NAME",
      "workflow": "deny-cluster-request.yaml",
      "workflowInputs": {
        "port_context": {
          "entity": "{{.entity}}",
          "runId": "{{.run.id}}"
        }
      },
      "reportWorkflowStatus": true
    }
  },
  "requiredApproval": false
}

Create new cluster action

GitHub (Legacy)
GitHub (Ocean)

Create new cluster action (click to expand)

{
  "identifier": "eks_cluster_create_new_cluster",
  "title": "Create new cluster",
  "icon": "GithubActions",
  "trigger": {
    "type": "self-service",
    "operation": "CREATE",
    "userInputs": {
      "properties": {
        "cluster-name": {
          "title": "Cluster Name",
          "type": "string"
        },
        "node-size": {
          "title": "Node Size",
          "type": "string",
          "default": "small",
          "enum": ["small", "medium", "large"],
          "enumColors": {
            "small": "lightGray",
            "medium": "lightGray",
            "large": "lightGray"
          }
        },
        "node-count": {
          "icon": "DefaultProperty",
          "title": "Node Count",
          "type": "string",
          "default": "1"
        },
        "control-plane": {
          "title": "Upbound control plane",
          "type": "string",
          "blueprint": "upbound_control_plane",
          "format": "entity"
        }
      },
      "required": ["cluster-name", "control-plane"],
      "order": ["control-plane", "cluster-name", "node-size", "node-count"]
    },
    "blueprintIdentifier": "eks_cluster"
  },
  "invocationMethod": {
    "type": "GITHUB",
    "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
    "repo": "CHANGE_TO_YOUR_REPO_NAME",
    "workflow": "new-cluster-request.yaml",
    "workflowInputs": {
      "cluster-name": "{{.inputs.\"cluster-name\"}}",
      "node-size": "{{.inputs.\"node-size\"}}",
      "node-count": "{{.inputs.\"node-count\"}}",
      "control-plane": "{{.inputs.\"control-plane\" | if type == \"array\" then map(.identifier) else .identifier end}}",
      "port_context": {
        "action": "{{ .action.identifier[(\"eks_cluster_\" | length):] }}",
        "runId": "{{.run.id}}"
      }
    },
    "reportWorkflowStatus": true
  },
  "requiredApproval": false
}

Create new cluster action (click to expand)

{
  "identifier": "eks_cluster_create_new_cluster",
  "title": "Create new cluster",
  "icon": "GithubActions",
  "trigger": {
    "type": "self-service",
    "operation": "CREATE",
    "userInputs": {
      "properties": {
        "cluster-name": {
          "title": "Cluster Name",
          "type": "string"
        },
        "node-size": {
          "title": "Node Size",
          "type": "string",
          "default": "small",
          "enum": ["small", "medium", "large"],
          "enumColors": {
            "small": "lightGray",
            "medium": "lightGray",
            "large": "lightGray"
          }
        },
        "node-count": {
          "icon": "DefaultProperty",
          "title": "Node Count",
          "type": "string",
          "default": "1"
        },
        "control-plane": {
          "title": "Upbound control plane",
          "type": "string",
          "blueprint": "upbound_control_plane",
          "format": "entity"
        }
      },
      "required": ["cluster-name", "control-plane"],
      "order": ["control-plane", "cluster-name", "node-size", "node-count"]
    },
    "blueprintIdentifier": "eks_cluster"
  },
  "invocationMethod": {
    "type": "INTEGRATION_ACTION",
    "installationId": "<YOUR_GITHUB_OCEAN_INTEGRATION_ID>",
    "integrationActionType": "dispatch_workflow",
    "integrationActionExecutionProperties": {
      "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
      "repo": "CHANGE_TO_YOUR_REPO_NAME",
      "workflow": "new-cluster-request.yaml",
      "workflowInputs": {
        "cluster-name": "{{.inputs.\"cluster-name\"}}",
        "node-size": "{{.inputs.\"node-size\"}}",
        "node-count": "{{.inputs.\"node-count\"}}",
        "control-plane": "{{.inputs.\"control-plane\" | if type == \"array\" then map(.identifier) else .identifier end}}",
        "port_context": {
          "action": "{{ .action.identifier[(\"eks_cluster_\" | length):] }}",
          "runId": "{{.run.id}}"
        }
      },
      "reportWorkflowStatus": true
    }
  },
  "requiredApproval": false
}

Delete EKS cluster action

GitHub (Legacy)
GitHub (Ocean)

Delete EKS cluster action (click to expand)

{
  "identifier": "eks_cluster_delete_eks_cluster",
  "title": "Delete EKS Cluster",
  "icon": "Alert",
  "trigger": {
    "type": "self-service",
    "operation": "DELETE",
    "userInputs": {
      "properties": {},
      "required": [],
      "order": []
    },
    "blueprintIdentifier": "eks_cluster"
  },
  "invocationMethod": {
    "type": "GITHUB",
    "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
    "repo": "CHANGE_TO_YOUR_REPO_NAME",
    "workflow": "delete-cluster.yaml",
    "workflowInputs": {
      "port_context": {
        "runId": "{{.run.id}}",
        "entity": "{{.entity}}"
      }
    },
    "reportWorkflowStatus": true
  },
  "requiredApproval": true,
  "approvalNotification": {
    "type": "email"
  }
}

Delete EKS cluster action (click to expand)

{
  "identifier": "eks_cluster_delete_eks_cluster",
  "title": "Delete EKS Cluster",
  "icon": "Alert",
  "trigger": {
    "type": "self-service",
    "operation": "DELETE",
    "userInputs": {
      "properties": {},
      "required": [],
      "order": []
    },
    "blueprintIdentifier": "eks_cluster"
  },
  "invocationMethod": {
    "type": "INTEGRATION_ACTION",
    "installationId": "<YOUR_GITHUB_OCEAN_INTEGRATION_ID>",
    "integrationActionType": "dispatch_workflow",
    "integrationActionExecutionProperties": {
      "org": "CHANGE_TO_YOUR_GITHUB_ORG_NAME",
      "repo": "CHANGE_TO_YOUR_REPO_NAME",
      "workflow": "delete-cluster.yaml",
      "workflowInputs": {
        "port_context": {
          "runId": "{{.run.id}}",
          "entity": "{{.entity}}"
        }
      },
      "reportWorkflowStatus": true
    }
  },
  "requiredApproval": true,
  "approvalNotification": {
    "type": "email"
  }
}

Create Upbound control plane entities

After setting up the blueprints and actions, create entities for your Upbound control planes:

Navigate to the Upbound control planes catalog page.
Click Manually add Upbound Control Plane (or the + Upbound Control plane button).

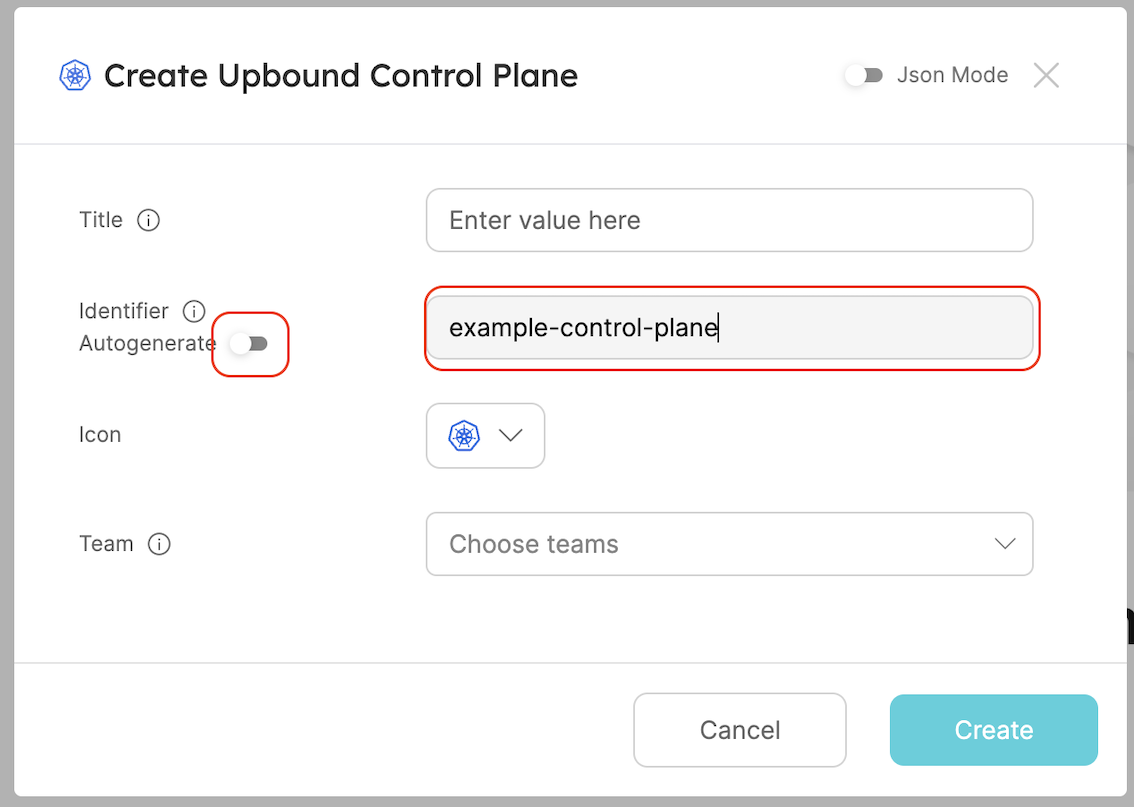

In the identifier field, enter the Upbound control plane identifier you saved earlier and click Create.

Repeat this step for each control plane in your Upbound organization.

Test the setup

Navigate to the Self-service page to see your actions:

You can now:

Request a new cluster: Creates a PR for approval.
Approve/Deny cluster requests: Manage pending requests.
Create a new cluster directly: Bypasses the approval workflow.
Delete an EKS cluster: Removes the cluster from Upbound and Port.

Prerequisites​

Set up data model​

Upbound Control Plane blueprint​

EKS Cluster blueprint​

EKS Cluster Request blueprint​

Set up the backend​

Create repository secrets​

Create the directory structure​

Create the GitHub workflows​

Create the cluster template​

Create the actions​

Request new cluster action​

Approve cluster request action​

Deny cluster request action​

Create new cluster action​

Delete EKS cluster action​

Create Upbound control plane entities​

Test the setup​
