Visualize your GitHub identity and access management

Available Github Integrations

This guide includes steps that require integration with GitHub:

• GitHub (Ocean) - uses the Ocean framework. We strongly recommend this integration for new and migrated setups.
• GitHub (Sunset) - uses a GitHub app that is in sunset and will be fully deprecated on September 15, 2026.

This guide demonstrates how to set up a monitoring solution to get insights into your GitHub Identity and Access Management (IAM) using Port's GitHub integration. Understanding your organization's IAM structure helps you audit permissions, improve security, and manage access efficiently.

Common use cases

• Understand your organization's IAM structure
• Audit GitHub organization members and their roles

Prerequisites

This guide assumes the following:

• You have a Port account and have completed the onboarding process.
• Port's GitHub Ocean integration is installed in your account.

Set up data model

When installing Port's GitHub app, the Repository blueprint is created by default.
However, the GitHub User and GitHub Team blueprints are not created automatically, so we will need to create them manually.

Create the Github user blueprint

Skip to the update data source mapping section if you already have the blueprint.

1. Go to the Builder page of your portal.

2. Click on + Blueprint.

3. Click on the {...} button in the top right corner, and choose Edit JSON.

4. Add this JSON schema:

   GitHub user blueprint (Click to expand)

   {
       "identifier": "githubUser",
       "title": "Github User",
       "icon": "Microservice",
       "schema": {
           "properties": {
           "email": {
               "title": "Email",
               "type": "string"
           }
           },
           "required": []
       },
       "mirrorProperties": {},
       "calculationProperties": {},
       "aggregationProperties": {},
       "relations": {}
   }

5. Click Save to create the blueprint.

Create the Github team blueprint

Skip to the update data source mapping section if you already have the blueprint.

1. Go to the Builder page of your portal.

2. Click on + Blueprint.

3. Click on the {...} button in the top right corner, and choose Edit JSON.

4. Add this JSON schema:

   GitHub team blueprint (Click to expand)

   {
       "identifier": "githubTeam",
       "title": "GitHub Team",
       "icon": "Github",
       "schema": {
           "properties": {
           "slug": {
               "title": "Slug",
               "type": "string"
           },
           "description": {
               "title": "Description",
               "type": "string"
           },
           "link": {
               "title": "Link",
               "icon": "Link",
               "type": "string",
               "format": "url"
           },
           "permission": {
               "title": "Permission",
               "type": "string"
           },
           "notification_setting": {
               "title": "Notification Setting",
               "type": "string"
           }
           },
           "required": []
       },
       "mirrorProperties": {},
       "calculationProperties": {},
       "relations": {
           "members": {
               "title": "Members",
               "target": "githubUser",
               "many": true,
               "required": false
           }
       }
   }

5. Click Save to create the blueprint.

Update data source mapping

GitHub (Ocean)

1. In your GitHub repository (or .github-private for organization-wide config), add or update the port-app-config.yml file with the following configuration to ingest repositories, teams, and users:

   Port port-app-config.yml (Click to expand)

   resources:
   - kind: repository
     selector:
       query: 'true'
       includedFiles:
         - README.md
     port:
       entity:
         mappings:
           identifier: .name
           title: .name
           blueprint: '"githubRepository"'
           properties:
             readme: .__includedFiles["README.md"]
             url: .html_url
             defaultBranch: .default_branch
             visibility: .visibility

   - kind: team
     selector:
       query: "true"
       members: true
     port:
       entity:
         mappings:
           identifier: .databaseId | tostring
           title: .name
           blueprint: '"githubTeam"'
           properties:
             name: .name
             slug: .slug
             description: .description
             link: .url
             permission: .permission
             notification_setting: .notificationSetting
           relations:
             members: '[.members.nodes[].login]'

   - kind: user
     selector:
       query: "true"
     port:
       entity:
         mappings:
           identifier: .login
           title: .login
           blueprint: '"githubUser"'
           properties:
             email: .email

2. Commit and push the configuration. The integration will sync automatically.

GitHub (Sunset)

1. Go to the Data Sources page of your portal.

2. Select the GitHub integration.

3. Add the following YAML block into the editor to ingest data from GitHub:

   GitHub integration configuration (Click to expand)

   resources:
   - kind: repository
       selector:
       query: 'true'
       port:
       entity:
           mappings:
           identifier: .name
           title: .name
           blueprint: '"githubRepository"'
           properties:
               readme: file://README.md
               url: .html_url
               defaultBranch: .default_branch
               visibility: .visibility

   - kind: team
       selector:
       query: "true"
       port:
       entity:
           mappings:
           identifier: ".id | tostring"
           title: .name
           blueprint: '"githubTeam"'
           properties:
               name: .name
               slug: .slug
               description: .description
               link: .html_url
               permission: .permission
   - kind: user
       selector:
       query: "true"
       port:
       entity:
           mappings:
           identifier: .login
           title: .login
           blueprint: '"githubUser"'
           relations:
               user: .email

4. Click Save & Resync to apply the mapping.

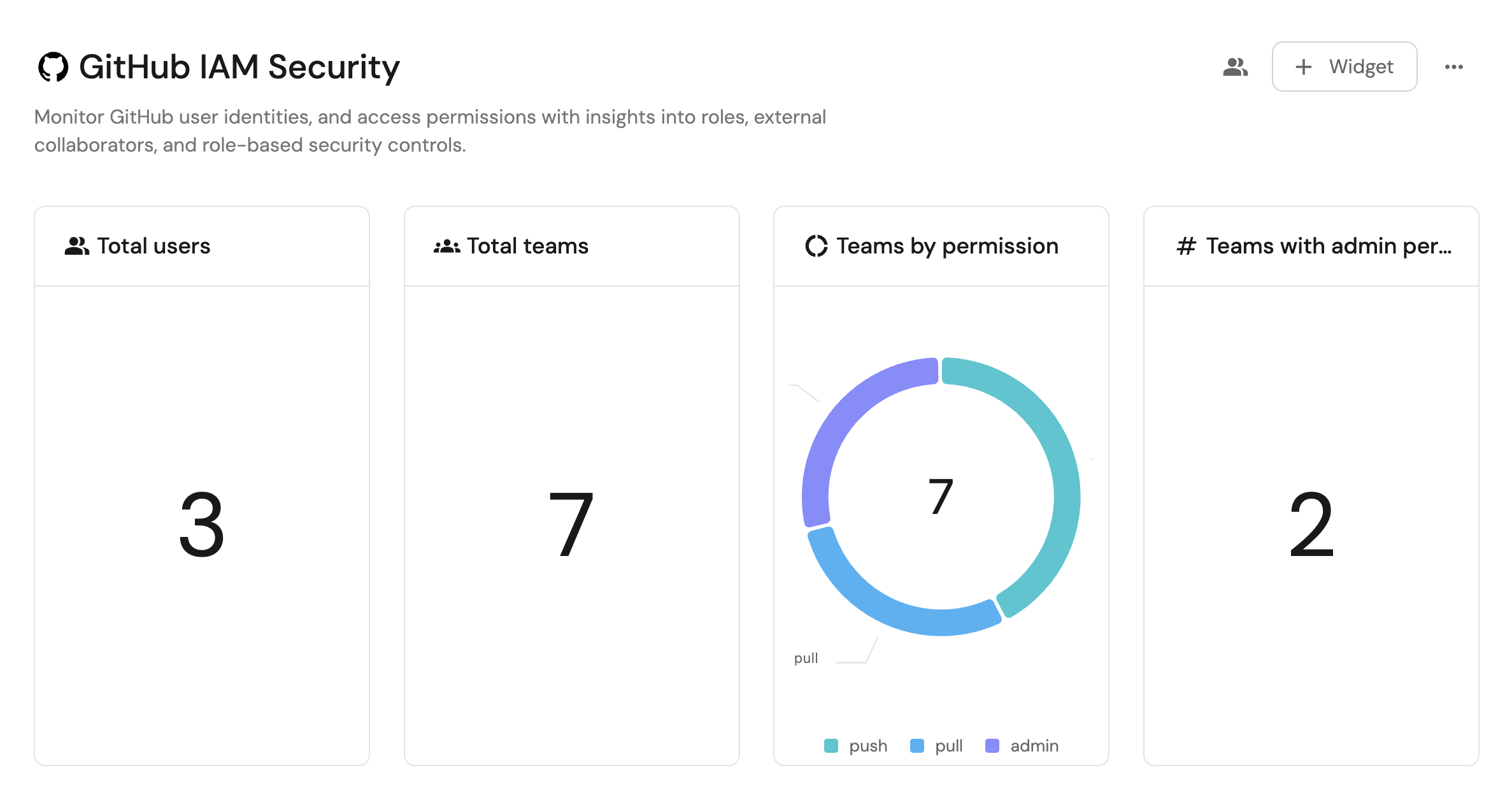

Visualize metrics

Once the GitHub data is synced, we can create a dashboard and add widgets to monitor IAM.

Create a dashboard

1. Navigate to your software catalog.
2. Click on the + button in the left sidebar.
3. Select New dashboard.
4. Name the dashboard GitHub IAM Overview.
5. Click Create.

We now have a blank dashboard where we can start adding widgets to visualize our identity and access management.

Add widgets

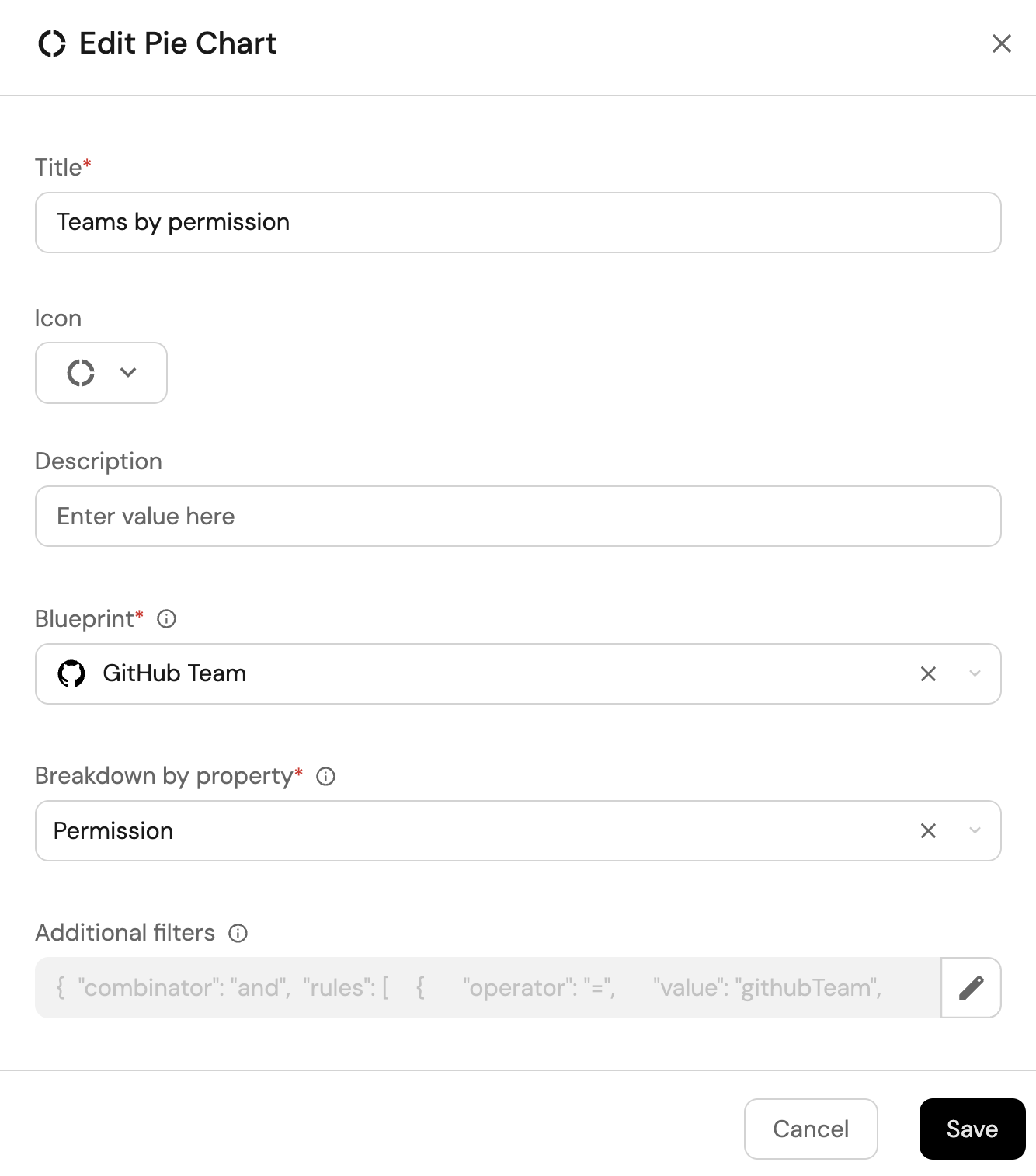

Teams by permission (click to expand)

1. Click + Widget and select Pie chart.

2. Title: Teams by permission.

3. Choose the GitHub Team blueprint.

4. Under Breakdown by property, select the Permission property



5. Click Save.

Teams with admin permission (click to expand)

1. Click + Widget and select Number Chart.

2. Title: Teams with admin permission.

3. Select Count entities Chart type and choose GitHub Team as the Blueprint.

4. Select count for the Function.

5. Add this JSON to the Additional filters editor to filter admin permission:

   [
       {
           "combinator":"and",
           "rules":[
               {
                   "property":"permission",
                   "operator":"=",
                   "value":"admin"
               }
           ]
       }
   ]

6. Select custom as the Unit and input teams as the Custom unit.



7. Click Save.

Total number of teams (click to expand)

1. Click + Widget and select Number Chart.

2. Title: Total teams (add the Team icon).

3. Select Count entities Chart type and choose GitHub Team as the Blueprint.

4. Select count for the Function.



5. Click Save.

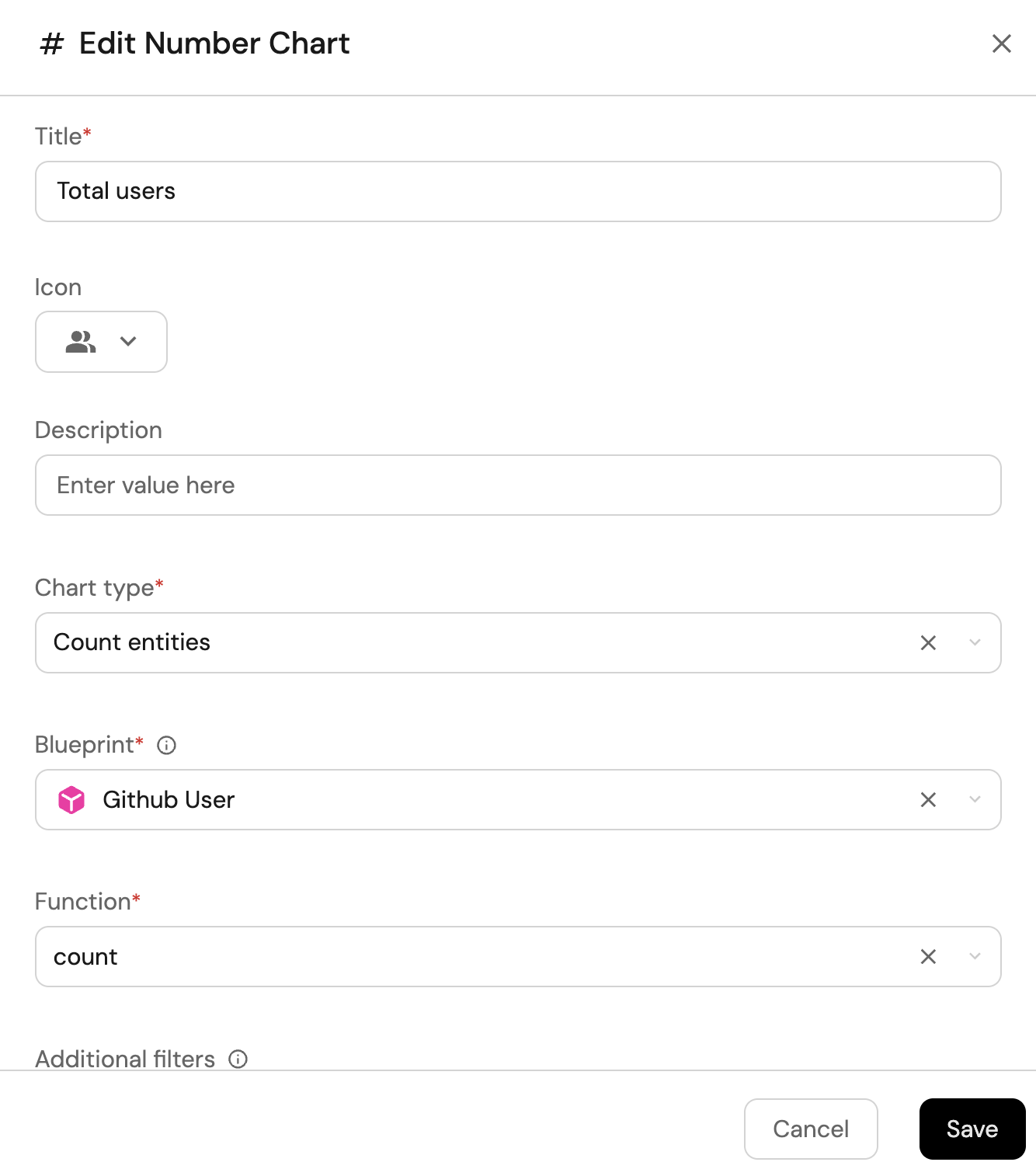

Total number of users (click to expand)

1. Click + Widget and select Number Chart.

2. Title: Total users (add the Team icon).

3. Select Count entities Chart type and choose GitHub User as the Blueprint.

4. Select count for the Function.



5. Click Save.
